750X450 Trench Drain Grate & Frame
860×540-60 Lockable Class C250
Features
Manufactured to BS: EN124
395 mm Clear Opening Trench Cover
Skid resistance
Anti-electrostatic
Color available black, grey, green, yellow and others
Clients customized available
Manufactured to BS: EN124
395 mm Clear Opening Trench Cover
Skid resistance
Anti-electrostatic
Color available black, grey, green, yellow and others
Clients customized available
Quantity
CHRS™ Composite Trench Cover is used the newest fiberglass-manufacturing innovation sheet moulding compound (SMC), and it combines the best of the older Open-Mold Spray Up and Resin-Transfer Molding (RTM) methods. Compared with the traditional cast iron cover or ductile iron cover,CHRS™ Composite Trench Cover has many advantages, such as Watertight,Lightweight,Non-conductive,UV protected,Non-corrosive,Anti-slip,No scrap value and cost competitive etc.
Therefore,CHRS™ Composite Trench Cover has become the best alternative to traditional steel and iron covers.

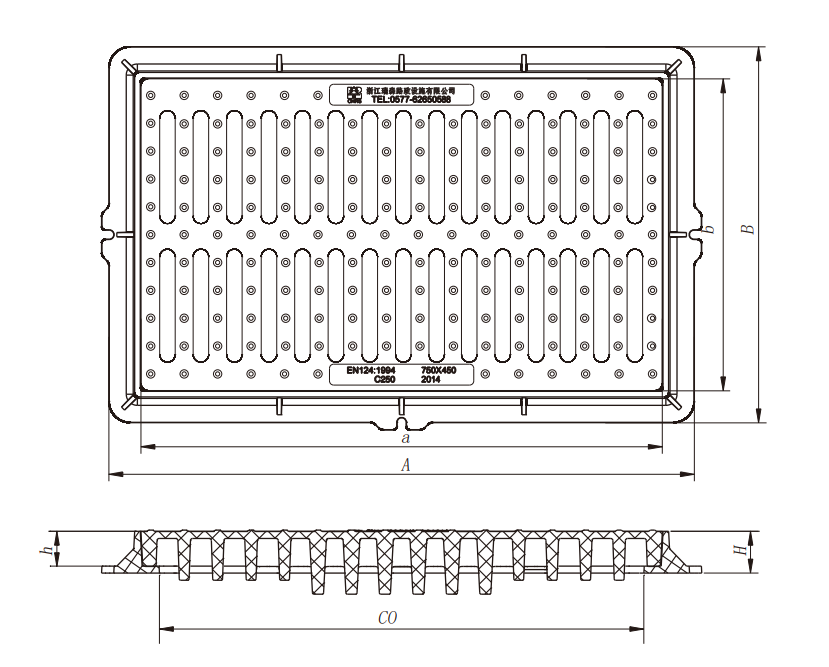

Product Structure Diagram:
Specifications and Dimensions:
| Cover | Product Grade | Trench Cover Specifications | Embedment Depth h | Trench Cover Edge Dimensions a×b | Weight |
| C250 | 750×450×50 | 50mm | 750×450 | 19.5Kg |
| Frame | Frame Specifications | Frame Height H | Frame Edge Dimensions A×B | Clear Opening CO | Weight |
| 860×540×60 | 60mm | 860×540 | 395mm | 6Kg |
