Single Wall Conductive Pipe 90 mm, 3″ Primary Pipe
90mm or 3″ ,EN14125 Approved
Features:
Manufactured to EN14125
HDPE Single Wall Conductive Pipe with EVOH resin barrier
Corrosion-free and Lightweight
Zero permeation: liquid/watertight
Easy installation: reducing cost and build time
Conductive pipe fittings,sockets, elbows, tees and etc.
Suitable for petrol, diesel, AdBlue and other alcohols (conductive), and chemicals.
Manufactured to EN14125
HDPE Single Wall Conductive Pipe with EVOH resin barrier
Corrosion-free and Lightweight
Zero permeation: liquid/watertight
Easy installation: reducing cost and build time
Conductive pipe fittings,sockets, elbows, tees and etc.
Suitable for petrol, diesel, AdBlue and other alcohols (conductive), and chemicals.
Quantity
Description of Single Wall Conductive Pipe:
CHRS® Single Wall Conductive Pipe is mainly used for fuel transportation and oil and service recovery. There are five layers of Single Wall Conductive Pipe from inside to outside, which are conductive layer, binding layer, EVOH layer, binding layer and HDPE layer.
Conductive layer can prevent the electrostatic accumulation of fuel flow and prevent the grounding fault current from passing through, thus minimizing the risk of spark generated by electrostatic discharge of pipe system and ensuring the safety of pipe system.
EVOH Barrier layer prevents the diffusion of hydrocarbons through the pipe wall, ensures the leakage resistance of the pipe.
HDPE layer improves the pipe strength and pressure grade, ensure a longtime service life.
Application of Single Wall Conductive Pipe: remote filling, pressure and suction distribution, ventilation, vapor recovery or conduits.

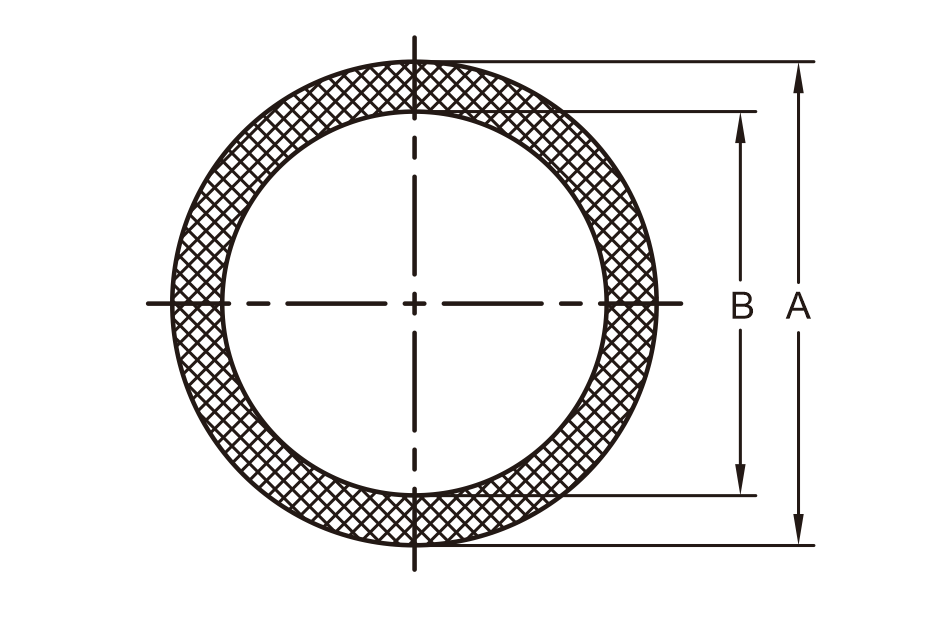

Specifications and Dimensions of Single Wall Conductive Pipe：
| Product number | Specifications (pipe outer diameter) | A | B |
| CHRS-001-90 | 90mm | 90mm | 76mm |
Order Information of Single Wall Conductive Pipe:
