Clear Opening 600mm Cover & Frame
Ф660-60 Lockable/Sealed Class A50 & B125 & C250 & D400
Features
Manufactured to BS: EN124
Skid resistance
600mm (24”) Clear opening
Lockable/Sealed
Manhole lid lifter :ID730
Color available black, grey, green, yellow and others
Clients customized available.
Manufactured to BS: EN124
Skid resistance
600mm (24”) Clear opening
Lockable/Sealed
Manhole lid lifter :ID730
Color available black, grey, green, yellow and others
Clients customized available.
Quantity
CHRS™Composite Round Cover is used the newest fiberglass-manufacturing innovation sheet moulding compound (SMC), and it combines the best of the older Open-Mold Spray Up and Resin-Transfer Molding (RTM) methods. Compared with the traditional cast iron cover or ductile iron cover,CHRS™Composite Round Cover has many advantages, such as Watertight,Lightweight,Non-conductive,UV protected,Non-corrosive,Anti-slip,No scrap value and cost competitive etc.
Therefore,CHRS™Composite Round Cover has become the best alternative to traditional steel and iron covers.
Therefore,CHRS™Composite Round Cover has become the best alternative to traditional steel and iron covers.

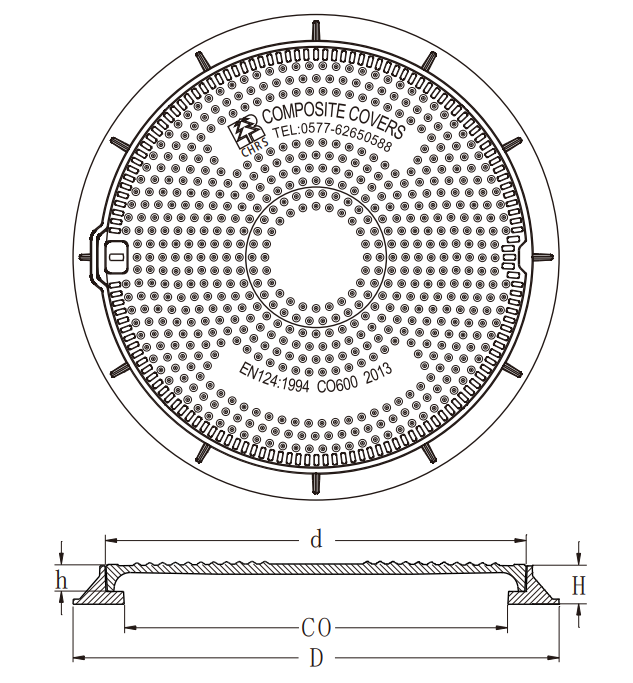

Product Structure Diagram:
Specifications and Dimensions:
| Cover | Product Grade | Round Cover Specifications | Embedment Depth h | Round Cover Diameter d | Weight |
| A50 | Φ660×40 | 40mm | Φ657mm | 10kg | |
| B125 | Φ660×40 | 40mm | Φ657mm | 14kg | |
| C250 | Φ660×40 | 40mm | Φ657mm | 21kg | |
| D400 | Φ660×60 | 60mm | Φ657mm | 27kg |
| Frame | Frame Specifications | Frame Height H | Frame Outer Diameter D | Clear Opening CO | Weight |
| Φ760×60 | 60mm | Φ760mm | 600mm | 5Kg |
