Clear Opening 800mm Manhole Cover & Frame
Φ970×100 Sealed Class A50&B125&C250 & D400
Features
Manufactured to BS: EN124
Skid resistance
800mm (32″) Clear Opening Manhole
Unlockable
Sealed with rubber
Manhole lid lifter :ID692
Color available black, grey, green, yellow and others
Clients customized available
Manufactured to BS: EN124
Skid resistance
800mm (32″) Clear Opening Manhole
Unlockable
Sealed with rubber
Manhole lid lifter :ID692
Color available black, grey, green, yellow and others
Clients customized available
Quantity
CHRS™Composite Round Cover is used the newest fiberglass-manufacturing innovation sheet moulding compound (SMC), and it combines the best of the older Open-Mold Spray Up and Resin-Transfer Molding (RTM) methods. Compared with the traditional cast iron cover or ductile iron cover,CHRS™Composite Round Cover has many advantages, such as Watertight,Lightweight,Non-conductive,UV protected,Non-corrosive,Anti-slip,No scrap value and cost competitive etc.
Therefore,CHRS™Composite Round Cover has become the best alternative to traditional steel and iron covers.

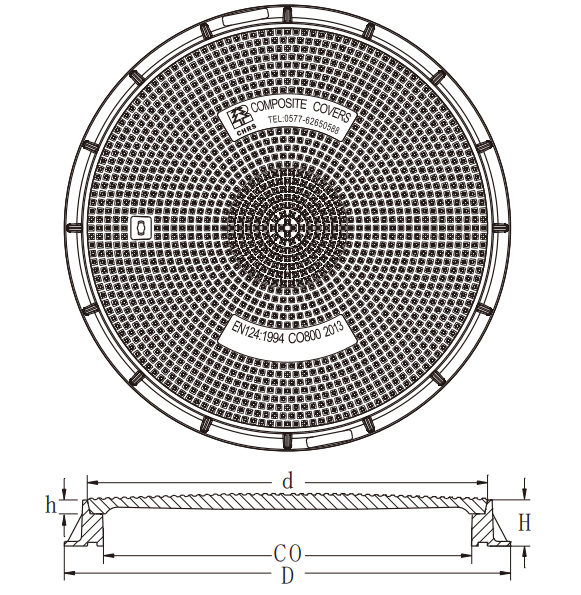

Product Structure Diagram:
Specifications and Dimensions:
| Cover | Product Grade | Round Cover Specifications | Embedment Depth h | Round Cover Diameter d | Weight |
| A50 | Φ870×30 | 30mm | Φ870mm | 28kg | |
| B125 | Φ870×35 | 30mm | Φ870mm | 34kg | |
| C250 | Φ870×55 | 30mm | Φ870mm | 45kg | |
| D400 | Φ870×55 | 30mm | Φ870mm | 45kg |
| Frame | Frame Specifications | Frame Height H | Frame Outer Diameter D | Clear Opening CO | Weight |
| Φ970×100 | 100mm | Φ970mm | 800mm | 15.5kg |
