Double Wall Conductive Pipe 125/110 mm, 4″ Secondary Contained Pipe
125/110 mm, 4″ EN14125 Approved
Features:
Manufactured to EN14125
Double wall pipe,Secondary Contained
HDPE with EVOH resin barrier
Zero permeation: liquid/watertight
Corrosion-free and Lightweight
Easy installation: reducing cost and build time
Conductive pipe fittings,sockets, elbows, tees and etc.
Suitable for petrol, diesel, AdBlue and other alcohols (conductive), and chemicals.
Manufactured to EN14125
Double wall pipe,Secondary Contained
HDPE with EVOH resin barrier
Zero permeation: liquid/watertight
Corrosion-free and Lightweight
Easy installation: reducing cost and build time
Conductive pipe fittings,sockets, elbows, tees and etc.
Suitable for petrol, diesel, AdBlue and other alcohols (conductive), and chemicals.
Quantity
Description of Double Wall Conductive Pipe:
CHRS® Double Wall Conductive Pipe is coaxial pipe or"pipe in pipe", single wall pipe is placed in secondary contained pipe. By applying an outer, secondary pipe over the inner primary pipe, an interstitial space is created. A leak detection system can then be used to monitor the interstitial space for the possible leakage.
The primary pipe is single wall pipe，there are five layers of single wall pipe from inside to outside, which are conductive layer, binding layer, EVOH layer, binding layer and HDPE layer.
The secondary contained pipe is composed of three layers, which are EVOH layer, binding layer and HDPE layer.
The application of Double Wall Conductive Pipe can not only avoid anti-static main pipeline damage, but also prevent possible leakage, so as to achieve better environmental safety effect.
Application of Double Wall Conductive Pipe: remote filling, pressure and suction distribution, ventilation, vapor recovery or conduits.

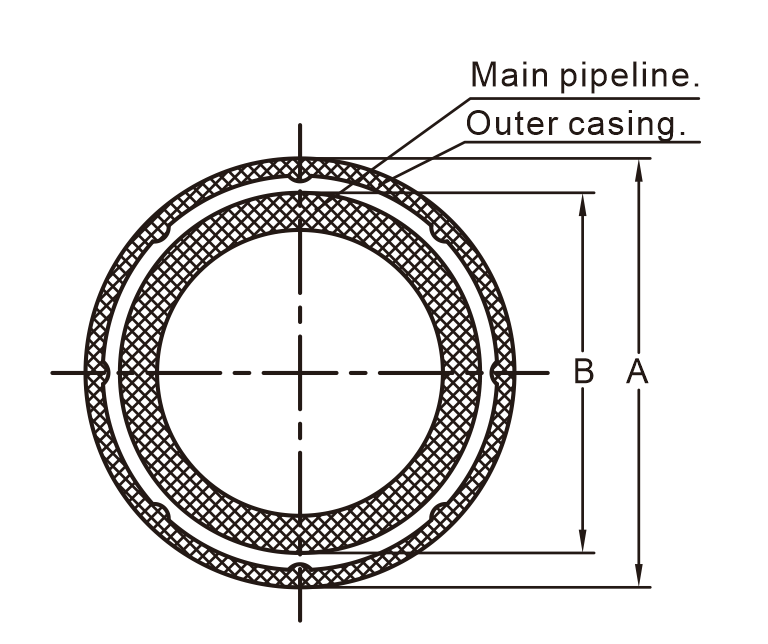

Specifications and Dimensions of Double Wall Conductive Pipe：
| Product number | Specifications (pipe outer diameter) | A | B |
| CHRS-001-125/110 | 125mm/110mm | 125mm | 110mm |
Order Information of Double Wall Conductive Pipe:
